- 7" TFT, colour LCD touch screen
- 12 leads simultaneous display
- Digital isolation technology and signal processing solution, digital filter
- Patient management, name, age and id, detail analysis report
- Built-in lithium rechargeable battery
- Thermal printing system provides more than 10 printing modes
- Can print 90 minutes and print out 150 ECG continually
- ECG-Sync software, USB connection to PC and built-in memory can store
more than 1000 cases
- Auto-measurement, auto-analysis and auto-interpretation
- Internal software: GB, FR, IT, ES, DE, TR, PL, PT, RU, KZ
- PC software: GB. Manual: GB, IT (FR on request)
USB connection allows real-time transmission to PC, remote data analysis and diagnosis, management and printing through the PC.
ECG instrument Input
• Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part
• Lead Standard 12 leads
• Input way: Floating and defibrillation protection
• Patient leak current: <10µA
• Sampling rate: 1000Hz
• A/D conversion: 12bit
• Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
• Time constant: >3.2s
• CMRR: >60dB, >100dB(Add filter)
• Enduring polarization: voltage ±500mV
• Noise level: <15µVp-p
Dispose Wave Data
• EMG interference filter: 25Hz/35Hz (-3dB)
• AC filter 50Hz/60Hz (=20dB)
Waveform output
• Recording way: Thermal printing system (32spots/mm)
• Recording paper: 110mm(W)×20m(L)
• Sensitivity: 2.5, 5, 10, 20, 40 mm/mV
• Paper speed:
- Auto-record: auto leads changing
- Rhythm record: 25 mm/s, 50 mm/s
- Manual-record: 5, 6.25, 10, 12.5, 25, 50, 100 mm/mV
Power supply
• AC: 110-220V, 50/60 Hz
• DC: 7.4V, 3700 mAh rechargeable lithium polymer battery
Fuse
• 2 pcs f5×20mm AC time lag; T250mA/250V(Power Supply:220V)
Form
• Size 315 x 215 x 77 mm
• Net Weight 1.7 kg

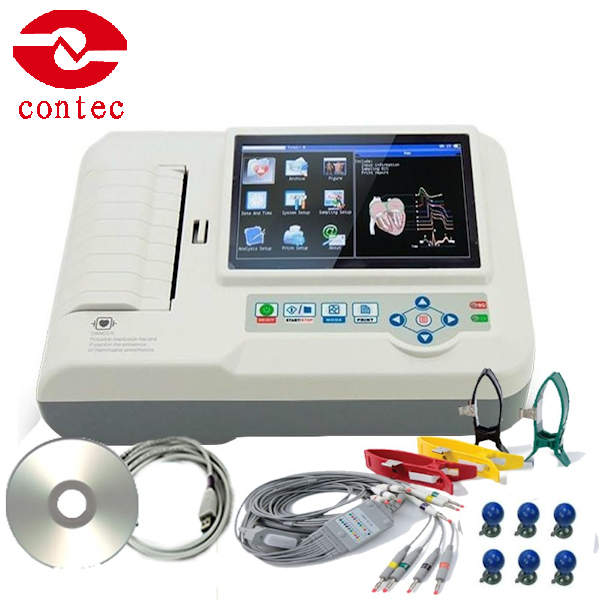

• ECG cable - 1 set
• Limb electrode clamp - 1 set
• chest electrodes - 1 set
• Ground wire
• Power connection
• Paper roll
• USB connection and PC software
